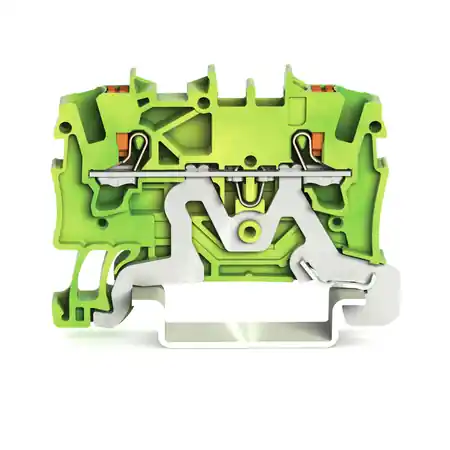

2-conductor ground terminal block; 1.5 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,50 mm²; green-yellow Wago Livrare rapidă

2-conductor ground terminal block; 1.5 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 1,50 mm²; green-yellow Wago Livrare rapidă

Prețul inițial a fost: 17,34 lei.Prețul curent este: 8,67 lei.

Salvează: 50%

SKU: SK0086638-RO20260312-113303 Categorie:
  • Livrare gratuita la comenzi de peste 49,99 lei.
  • Retur si rambursare in termen de 14 zile.
  • Plata securizata prin metode de plata sigure si verificate.

Descriere

Descriere produs

Ratings per: IEC/EN 60947-7-2;Tehnologie conexiune: Push-in CAGE CLAMP®;Tip actionare: Push-in; Push-button;Connectable conductor materials: Copper;Nominal cross-section: 1,5 mm²;Solid conductor: 0,25 … 2,5 mm² / 22 … 14 AWG;Solid conductor; push-in termination: 0,75 … 2,5 mm² / 18 … 14 AWG;Fine-stranded conductor: 0,25 … 2,5 mm² / 22 … 14 AWG;Fine-stranded conductor; with insulated ferrule: 0,75 … 1,5 mm² / 18 … 16 AWG;Fine-stranded conductor; with ferrule; push-in termination: 0,75 … 1,5 mm² / 18 … 16 AWG;Strip length: 9 … 11 mm / 0.35 … 0.43 inch;Numar total de conexiuni: 2;Total number of potentials: 1;Numar nivele: 1;Wiring type: Front-entry wiring;Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross section can also be inserted via push-in termination.;Number of jumper slots: 2;Latime: 4,2 mm / 0.165 inch;Inaltime from upper-edge of DIN-rail: 32,9 mm / 1.295 inch;Adancime: 50,8 mm / 2 inch;Design: horizontal;Tip montaj: DIN-35 rail;Marking level: Center/side marking;Culoare: green-yellow;Material izolator: Polyamide 66 (PA 66);Greutate: 7; gTip ambalare: BOX;Tara de origine: DE;GTIN: 4055143694674;Customs tariff number: 85369010000;
