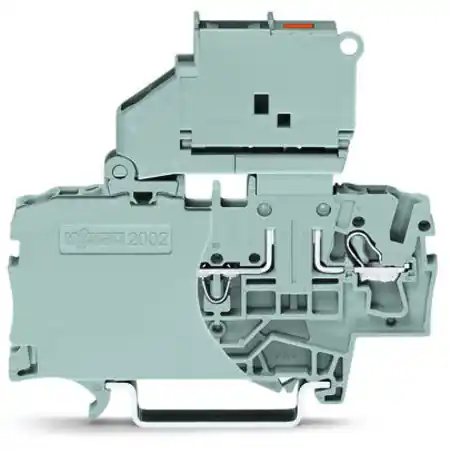

2-conductor fuse terminal block; with pivoting fuse holder; with end plate; for 5 x 20 mm miniature metric fuse; with blown fuse indication by LED; 230 V; for DIN-rail 35 x 15 and 35 x 7.5; 2.5 mm²; Push-in CAGE CLAMP®; 2,50 mm²; gray Wago Ultima șansă

Descriere

Descriere produs

Ratings per: IEC/EN 60947-7-3;Tesiune nominala (III/3): 250; VTensiune nominala de supratensiune (III/3): 6; kVCurent nominal: 6,3; AOperation status indicator: 230 V;Legend (ratings): (III / 3) ≙ Overvoltage category III / Pollution degree 3;Tensiune nominala UL (Use Group B): 250; VCurent nominal UL (Use Group B): 6,3; ATensiune nominala UL (Use Group C): 250; VCurent nominal UL (Use Group C): 6,3; ATensiune nominala UL (Use Group D): 250; VCurent nominal UL (Use Group D): 6,3; ACertificari: UL 1059;Tehnologie conexiune: Push-in CAGE CLAMP®;Tip actionare: Push-in; Open Tool Slot;Connectable conductor materials: Copper;Nominal cross-section: 2,5 mm²;Solid conductor: 0,25 … 4 mm² / 22 … 12 AWG;Solid conductor; push-in termination: 0,75 … 4 mm² / 18 … 12 AWG;Fine-stranded conductor: 0,25 … 4 mm² / 22 … 12 AWG;Fine-stranded conductor; with insulated ferrule: 1 … 2,5 mm² / 18 … 12 AWG;Fine-stranded conductor; with ferrule; push-in termination: 1 … 2,5 mm² / 18 … 12 AWG;Strip length: 10 … 12 mm / 0.39 … 0.47 inch;Numar total de conexiuni: 2;Total number of potentials: 1;Numar nivele: 1;Wiring type: Front-entry wiring;Note (conductor cross-section): Depending on the conductor characteristic, a conductor with a smaller cross-section can also be inserted via push-in termination.;Number of jumper slots: 2;Latime: 6,2 mm / 0.244 inch;Inaltime from upper-edge of DIN-rail: 57,2 mm / 2.252 inch;Adancime: 66,1 mm / 2.602 inch;Design: horizontal type;Tip montaj: DIN-35 rail;Marking level: Center/side marking;Culoare: gray;Material izolator: Polyamide 66 (PA 66);Greutate: 13,7; gProduct Group: 22 (TOPJOB S);Tip ambalare: BOX;Tara de origine: CN;GTIN: 4045454790042;Customs tariff number: 85369095990;
